Item No.: HM-102 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Bronze Gate Valve Flanged ends ISI Marked to
IS-778/1984 Class-I, Screwed in
Bonnet, Non Rising Stem, Hydraulic Pressure Body tested - 1.5
MPa, Seat & Back Seat - 1.0 MPa |
1 |
Hand Wheel |
Cast Iron |
IS-210 FG 200 |
|
2 |
Stem |
Brass |
IS-6912 FLB |
|
3 |
Gland Nut |
G.M. |
IS-318 LTB |
|
4 |
Bonnet |
G.M. |
IxS-318 LTB |
|
5 |
Gland |
G.M. |
IS-318 LTB |
|

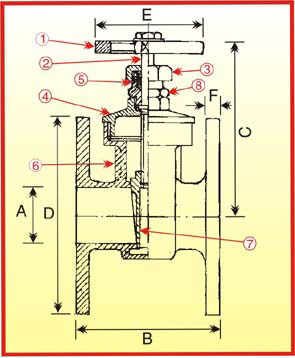

See
Drawing |
|
Stuffing Box |
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
15.0 |
20.0 |
25.0 |
32.0 |
40.0 |
50.0 |
65.0 |
80.0 |
100.0 |
|
B |
720 |
76.0 |
90.0 |
100.0 |
110.0 |
120.0 |
140.0 |
150.0 |
190 |
|
C |
109 |
112 |
120 |
152 |
165 |
178 |
230 |
270 |
315 |
|
D |
95 ± 1 |
105 ± 1 |
115 ± 1 |
140 ± 1 |
150 ± 1 |
165 ± 1 |
185 ± 1 |
200 ± 1 |
220 ± 1.5 |
|
E |
58 |
58 |
66 |
74 |
82 |
92 |
109 |
130 |
157 |
|
F |
6 ± 1.5 |
6 ± 1.5 |
8 ± 1.5 |
8 ± 1.5 |
9 ± 3 |
11 ± 3 |
13 ± 3 |
13 ± 3 |
16 ± 3 |
|
|
