Item No.: HM-103 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Bronze Wheel Valve screwed ISI marked to
IS-778/1984 Class-I,
Screwed female end BSP, Screwed in bonnet, Rising spindle
Hydraulic Pressure Body 1.5 MPa, Seat - 1.0 MPa |
1 |
Body |
G.M. |
IS-318 LTB |
|
2 |
Bonnet |
G.M. |
IS-318 LTB |
|
3 |
Gland Nut |
G.M. |
IS-318 LTB |
|
4 |
Hand Wheel |
Cast Iron |
IS-210 FG 200 |
|
5 |
Stem |
Brass |
IS-6912 FLB |
|
6 |
Disc |
G.M. |
IS-318 LTB |
|

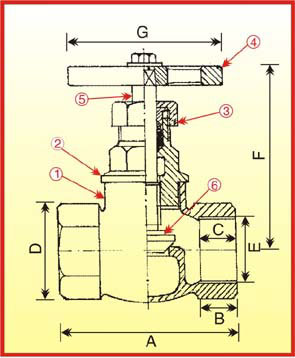

See
Drawing |
|
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
18 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
47.0 |
50.0 |
60.0 |
70.0 |
80.0 |
95.0 |
110.0 |
125.0 |
160.0 |
180.0 |
216.0 |
|
B |
11.0 |
12.0 |
13.0 |
15.0 |
15.0 |
17.0 |
17.0 |
21.0 |
23.0 |
25.0 |
27.0 |
|
C |
9.0 |
10.0 |
11.0 |
12.0 |
14.0 |
15.0 |
15.0 |
19.0 |
20.0 |
22.0 |
26.0 |
|
D |
18.0 |
22.0 |
26.0 |
32.0 |
39.0 |
49.0 |
55.0 |
68.0 |
85.0 |
98.0 |
127.0 |
|
E |
1/4"x19 |
3/8"x19 |
1/2"x14 |
3/4"x14 |
1"x11 |
1-1/4"x11 |
1-1/2"x11 |
2"x11 |
2-1/2"x11 |
3"x11 |
4"x11 |
|
F |
- |
- |
80.0 |
80.0 |
95.0 |
105.0 |
120.0 |
135 |
- |
- |
- |
|
G |
- |
- |
58 |
58 |
66 |
74 |
82 |
92 |
109 |
103 |
157 |
|
|
