Item No.: HM-105 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Bronze Horizontal Check Valve ISI marked to
IS-778/1984 Class-I, Screwed in Bonnet
Screwed female end Hydraulic Pressure Body tested 1.5 MPa, Seat
- 1.0 MPa |
1 |
Body |
G.M. |
IS-318 LTB |
|
2 |
Bonnet |
G.M. |
IS-318 LTB |
|
3 |
Seat |
G.M. |
IS-318 LTB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

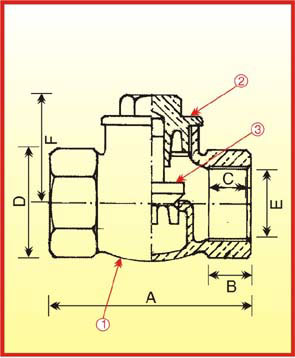

See
Drawing |
|
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
60.0 |
70.0 |
80.0 |
95.0 |
110.0 |
125.0 |
160.0 |
180.0 |
216.0 |
|
B |
13.0 |
15.0 |
15.0 |
17.0 |
17.0 |
21.0 |
23.0 |
25.0 |
27.0 |
|
C |
11.0 |
12.0 |
14.0 |
15.0 |
15.0 |
19.0 |
20.0 |
22.0 |
26.0 |
|
D |
20.0 |
32.0 |
39.0 |
49.0 |
55.0 |
68.0 |
85.0 |
98.0 |
127.0 |
|
E |
1/2"x14 |
3/4"x14 |
1"x11 |
1-1/4"x11 |
1-1/2"x11 |
2"x11 |
2-1/2"x11 |
3"x11 |
4"x11 |
|
F |
35 |
55 |
55 |
57 |
62 |
70 |
70 |
70 |
70 |
|
|
