Item No.: HM-107 |
S. No. |
Parts Name |
Material |
|
Bronze Vertical Check Valve ISI Marked to
IS-778/1984 Class-I, Screwed Female
end BSP Hydraulic Pressure Body tested - 1.5 MPa, Seat - 1.0 MPa |
1 |
Body |
Gun Metal |
|
2 |
Seat |
Gun Metal |
|
3 |
Spring |
Phaspor Bronze |
|
4 |
Nut |
Brass |
|

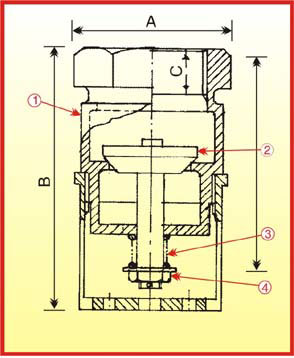

See
Drawing |
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
Flat to Flat "A" |
26.0 |
32.0 |
39.0 |
49.0 |
55.0 |
68.0 |
85.0 |
98.0 |
127.0 |
|
End to End "B" |
65.0 |
70.0 |
75.0 |
85.0 |
95.0 |
110.0 |
130.0 |
145.0 |
190.0 |
|
"C" |
12.0 |
14.0 |
14.0 |
17.0 |
17.0 |
22.0 |
23.0 |
25.0 |
29.0 |
|
Wall Thickness "D" (Min.) |
2.0 |
2.1 |
2.3 |
2.5 |
2.5 |
3.0 |
3.3 |
3.6 |
4.0 |
|
|
