Item No.: HM-108 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Bronze Swing Check Valve ISI marked to
IS-778/1984 Class-I, Screwed in Bonnet
Screwed female end Hydraulic Pressure Body tested 1.5 MPa, Seat
- 1.0 MPa |
1 |
Body |
G.M. |
IS-318 LTB |
|
2 |
Bonnet |
G.M. |
IS-318 LTB |
|
3 |
Seat |
G.M. |
IS-318 LTB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

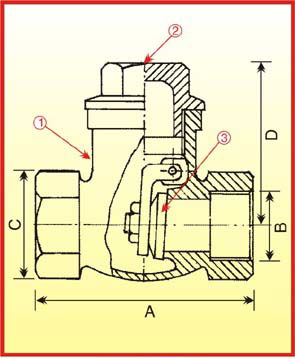

See Drawing |
|
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
|
A |
65.0 |
75.0 |
95.0 |
105.0 |
125.0 |
150.0 |
180.0 |
210.0 |
|
B |
1/2"x14 |
3/8"x14 |
1"x11 |
1-1/4"x11 |
1-1/2"x11 |
2"x11 |
2-1/2"x11 |
3"x11 |
|
C |
26.0 |
32.0 |
49.0 |
49.0 |
55.0 |
68.0 |
85 |
98.0 |
|
D |
46.0 |
52.0 |
69.0 |
69.0 |
78.0 |
82.0 |
106.0 |
132.0 |
|
Nominal |
15.0 |
20.0 |
31.0 |
31.0 |
39.0 |
50.0 |
65.0 |
80.0 |
|
|
