Item No.: HM-109 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Bronze Ferrule Cock ISI Marked to
IS-2692/1989 Hydraulic Pressure Body & Seat - 1.5 MPa |
1 |
Body |
G.M. |
IS-318 LTB |
|
2 |
Bonnet |
G.M. |
IS-318 LTB |
|
3 |
Plug |
G.M |
IS-318 LTB |
|
4 |
Washer |
Synt. Rubb. |
IS-4346 |
|

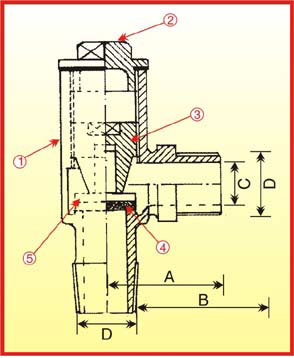

See Drawing |
5 |
Washer Plate |
Brass |
IS-6912 FLB |
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
|
A |
55 |
60 |
70 |
85 |
95 |
115 |
|
B |
60 |
65 |
75 |
90 |
100 |
120 |
|
C |
12.3 |
17.8 |
24.5 |
30.8 |
36.8 |
46.8 |
|
D |
1/2"x14 |
3/4"x14 |
1"x11 |
1-1/4"x11 |
1-1/2"x11 |
2"x11 |
|
|
B.S.P.T. |
B.S.P.T. |
B.S.P.T. |
B.S.P.T. |
B.S.P.T. |
B.S.P.T. |
|
|
