Item No.: HM-110 |
S. No. |
Parts Name |
Material |
Confirm To |
|
Brass Bib Cock ISI Marked to IS-781/1984
Screwed male end BSP Hydraulic Pressure Body 1.5 MPa, Seat - 1.0
MPa |
1 |
Handle |
Brass |
Gr DCB2 of IS-1264 |
|
2 |
Stem |
Brass |
Gr FH TBI of IS-6912 |
|
3 |
Gland |
Brass |
Gr DCB2 of IS-1264 |
|
4 |
Bonnet |
Brass |
Gr DCB2 of IS-1264 |
|
5 |
Body |
Brass |
Gr DCB2 of IS-1264 |
|
6 |
Washer Plate |
Brass |
Gr DCB2 of IS-1264 |
|
7 |
Washer |
Syn. Rubb. |
IS-4346 |
|

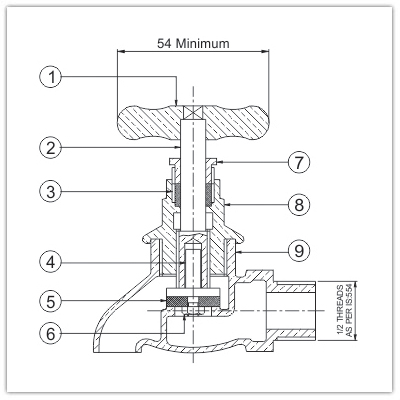

See Drawing |
|
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
54.0 |
61.0 |
67.0 |
- |
40.0 |
50.0 |
65.0 |
80.0 |
100.0 |
|
B |
26.0 |
31.0 |
38.0 |
- |
120.0 |
145.0 |
165.0 |
185.0 |
216.0 |
|
C |
1/2"x14 |
3/4"x14 |
1"x11 |
- |
120.0 |
135.0 |
135.0 |
135.0 |
135.0 |
|
D |
13.0 |
18 |
23.0 |
- |
150 ± 1 |
165 ± 1 |
185 ± 1 |
200 ± 1 |
220 ± 1.5 |
|
E |
65.0 |
65.0 |
65.0 |
- |
82 |
92 |
109 |
130 |
157 |
|
|
