Item No.: HM-112 |
S. No. |
Parts Name |
Material |
Confirm To |
Brass Stop Cock ISI Marked to IS 781/1984
Screwed female ends to BSP Threads to IS:554. Screwed in bonnet,
Screw down type. Hydraulic Pressure Body - 1.5
MPa, Seat - 1.5 MPa |
1 |
Handle |
Brass |
Gr DCB2 of IS-1264 |
2 |
Stem |
Brass |
Gr FH TBI of IS-6912 |
3 |
Gland |
Brass |
Gr DCB2 of IS-1264 |
4 |
Bonnet |
Brass |
Gr DCB2 of IS-1264 |
5 |
Body |
Brass |
Gr DCB2 of IS-1264 |
6 |
Washer Plate |
Brass |
Gr DCB2 of IS-1264 |

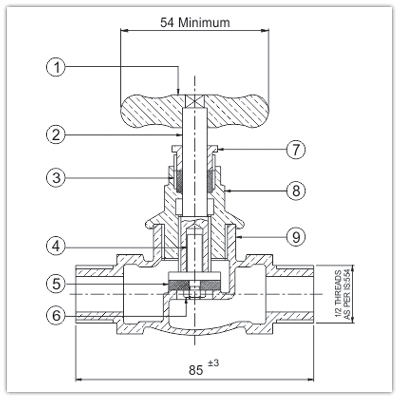

See Drawing |
7 |
Washer |
Syn. Rubb. |
IS-4346 |
|
|
|
Dimn. |
Nominal Size in MM |
|
15 |
20 |
25 |
"A" |
54.0 |
61.0 |
67.0 |
"B" |
60.0 |
- |
- |
"C" |
29.0 |
34.0 |
43.0 |
"D" |
1/2"x14 |
3/4"x14 |
1"x11 |
"E" |
65.0 |
65.0 |
- |
|
|
|
|
|
Dimn. |
Nominal Size in MM |
|
15 |
20 |
25 |
"A" |
54.0 |
61.0 |
67.0 |
"B" |
84.0 |
- |
- |
"C" |
25.0 |
- |
- |
"D" |
1/2"x14 |
3/4"x14 |
1"x11 |
"E" |
13 |
18.0 |
23.0 |
"F" |
65.0 |
- |
- |
|
|
|
