Item No.: HM-206 |
S. No. |
Parts Name |
Material |
|
Bronze Y-Type Strainer Screwed Female end
BSP Hydraulic Pressure Body Testing - 1.5MPa |
1 |
Body |
Gun Metal |
|
2 |
Strainer |
S.S. |
|
3 |
Bonnet |
Gun Metal |
|

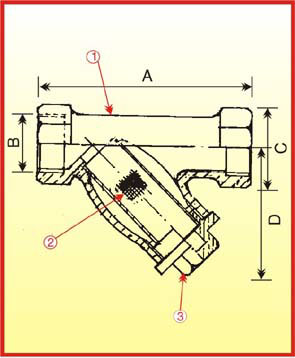

See Drawing |
|
|
|
|
| |
|
|
Dimn. |
Nominal Size in MM |
|
|
15 |
20 |
25 |
|
A |
72 |
96 |
122 |
|
B |
1/2"x14 |
3/4"x14 |
1"x11 |
|
C |
28 |
33 |
40 |
|
D |
52 |
66 |
80 |
|
|
