Item No.: HM-207 S. No.   Parts Name   Material

Bronze Lift Type Relief Valve Screwed male Inlet and Female Outlet Normal Pressure adjustable range 30 Lbs - 250 Lbs

 1   Adjusting Screen Gun Metal
2   Check Net Gun Metal
3   Spring Disc Gun Metal
4   Spring S.S.
5   Spring Chamber G.M.
6   Spindle S.S.
7   Valve Seat G.M.

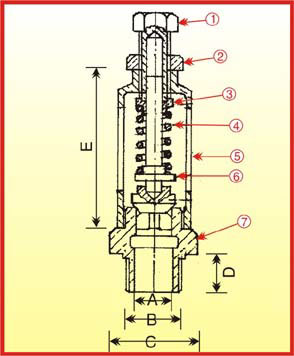

See Drawing

 8   Body G.M

Dimn.   Nominal Size in MM
  15 20 25
"A" 14 18.5 245
"B" 1/2"x14 3/4"x14 1"x11
"C" 32 40 47
"D" 22 26 26
"E" 78 84 100
